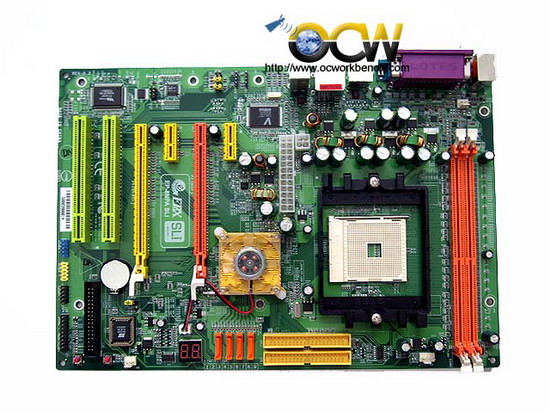

EPoX 8NPA SLI / socket 754
Trochę wcześniej informowaliśmy już o tej płycie na socket 754, wyposażoną w tryb pracy SLI. Teraz możemy zobaczyć co to cudo potrafi. Strona OCWorkbench przetestowała już ten model i porównała z innymi producentami (pracującymi w trybie pojedynczej karty graficznej). Płyta, oparta o układ nForce 4 dedykowana jest dla procesorów Athlon 64 / Sempron 3700+ z 1.6 GTs HyperTransport. Obsługuje między innymi SATA II, RAID 0, 1Gb Ethernet czy 6-CH audio RealTek ALC65X AC’97 v2.3. Zainteresowanych dokładnymi danymi i wynikami testów, odsyłam TUTAJ.
Specifications
CPU Socket:
Support Socket-754 based AMD Athlon-64/Sempron up to 3700+ with 1.6GTs HyperTransport processor
System Memory:
Two 184-pin DDR SDRAM DIMM sockets
Support single-sided or double-sided 2.5v DDR-333/400 DIMMs with dual channel architecture in 128/256/512Mb technologies
Support Asynchronous clocking mode between FSB and DIMM
Support up to 2GB system memory
Chipset：
nVidia nForce4 SLI AGPset
Expansion Slots:
Two PCI connectors compliant with PCI v2.2
Two PCI Express (x1) connectors compliant with PCI Express 1.0a
Two PCI Express (x16) connectors compliant with PCI Express 1.0a to support SLi technology
(Without SLI MXM connector)
USB:
Ten USB connectors compliant with USB2.0 from embedded USB controller (4 connectors at rear panel).
P-ATA IDE:
Two IDE ports (up to 4 IDE devices) with UDMA-33, ATA-66/100/133 support from embedded IDE controller.
S-ATA II RAID:
Four S-ATA II ports from nForce4 SLi with nV RAID and up to 3Gbps bandwidth , nV Disk Alert
LAN:
1Gb Ethernet from onboard VITESS VSC8201RX Gigabit Ethernet PHY.
Support nV Firewall 2.0 , Active Armor
Audio:
Selectable 2 or 6-CH audio from onboard RealTek ALC65X AC’97 v2.3 compliant CODEC.
Support Aux-In, CD-In

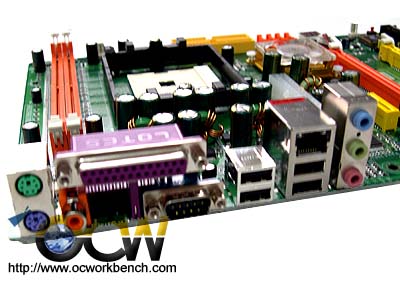

Rear panel audio jacks configuration;
For 2-channel mode; stereo Line-out (green), stereo Line-In (blue) and Mic-In (pink)
For 6-channel mode; Front stereo-out(green), Rear stereo-out (blue), Center and Sub-woofer (pink)
Support Front panel audio for Mic-In and stereo Line-out only. (Front panel Line-out electrically shared with rear panel Line-out)
Support Auto Jack Sensing for fool-proof audio device installation
Support SPDIF Coaxial output.
